TECHNICAL DATA

ES

Hose size

3"4S

Swaging range(mm)

Φ 6-30

Master die shoe length(mm)

110

Standard voltage

380V/50Hz

Motor power

4kW

Optional voltage &motor

220V/2.2kW

Pump(l/min)

19L

Number of swagings/hour

800

Noise level (dB)

70

Max opening(mm)

Φ+31mm

Crimping force(kN)

8610

Electric limit switch

√

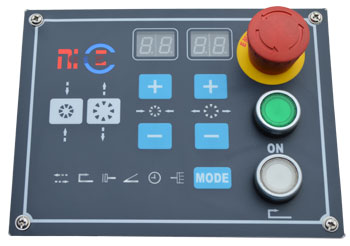

Electronic control

√

Electric pedal

√

Manual change

√

Dlmenslons LxWxH(mm)

685x530x1400

Weight without oil

480Kg
